uPVC PRESSURE FITTINGS

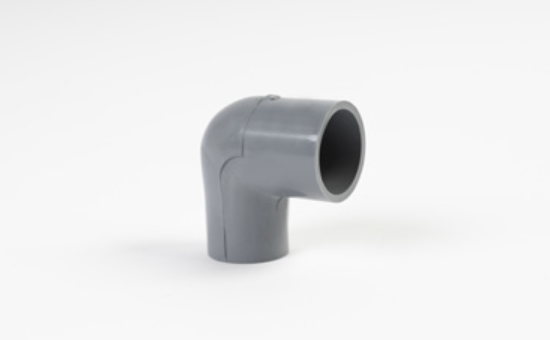

Reducing Elbow
Nominal Size (mm)
20 x 15 – – – –
– – – – –
– – – – –
– – – – –

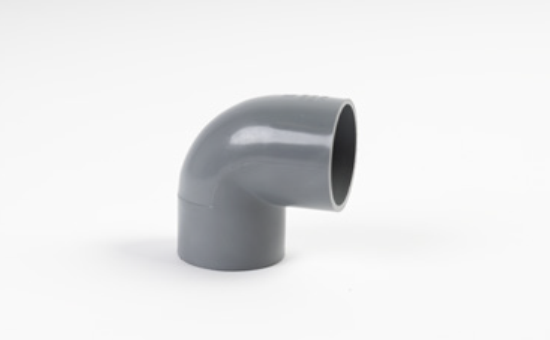

Equal Elbow
Nominal Size (mm)
15 40 100 – –
20 50 155 – –
25 65 – – –
32 80 – – –

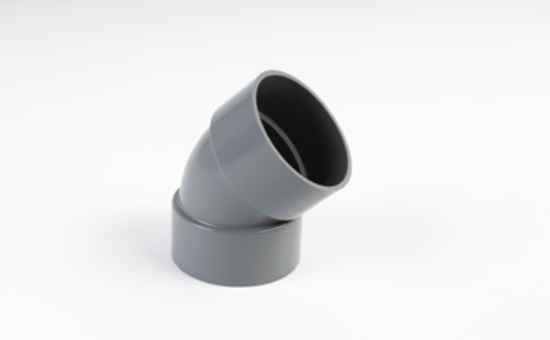

45˚ Elbow
Nominal Size (mm)
80 – – – –
100 – – – –
155 – – – –
– – – – –

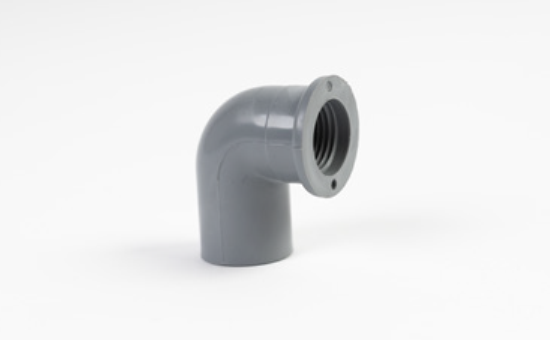

P/T Elbow
Nominal Size (mm)
15 40 – – –
20 50 – – –
25 – – – –
32 – – – –
End Cap
Nominal Size (mm)
15 40 155 – –
20 50 200 – –
25 80 – – –
32 100 – – –
Equal Tee
Nominal Size (mm)
15 40 100 – –
20 50 – – –
25 65 – – –
32 80 – – –

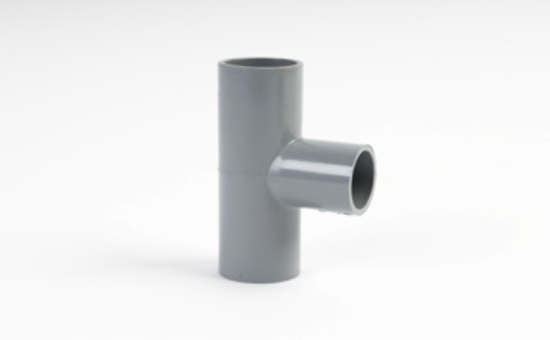

Reducing Tee
Nominal Size (mm)
20 x 15 32 x 20 40 x 25 50 x 32 100 x 50
25 x 15 32 x 25 50 x 15 50 x 40 100 x 80
25 x 20 40 x 15 50 x 20 80 x 25 –
32 x 15 40 x 20 50 x 25 80 x 50 –

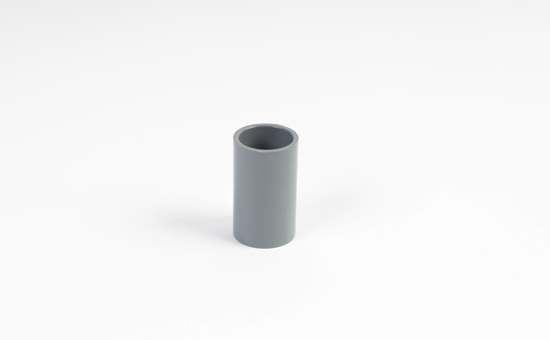

DE Socket
Nominal Size (mm)
15 40 155 – –
20 50 – – –
25 80 – – –
32 100 – – –

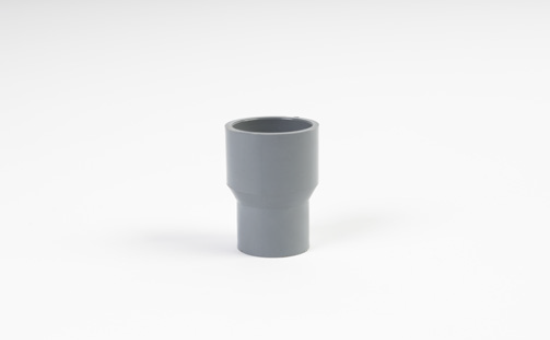

Reducing Socket
Nominal Size (mm)
20 x 15 32 x 20 40 x 25 50 x 32 100 x 80
25 x 15 32 x 25 40 x 32 50 x 40 –
25 x 20 40 x 15 50 x 20 80 x 50 –
32 x 15 40 x 20 50 x 25 100 x 50 –

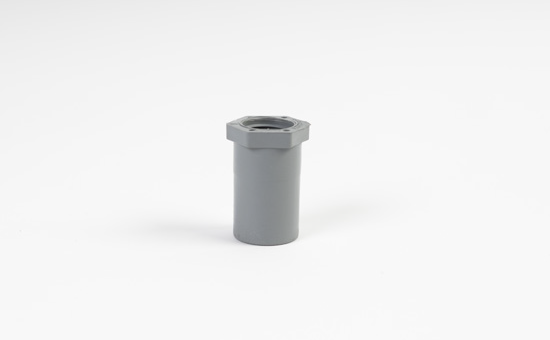

P/T Socket
Nominal Size (mm)
15 40 40 x 32 – –
20 50 – – –
25 80 – – –
32 100 – – –

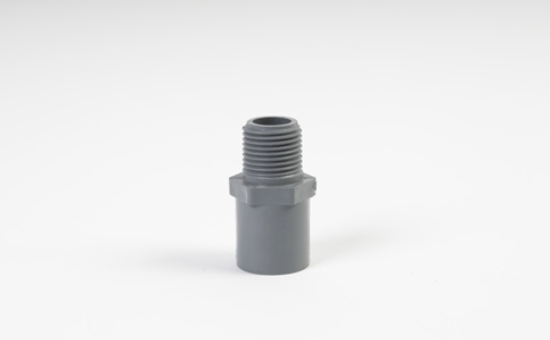

Valve Socket
Nominal Size (mm)
15 40 – – –
20 50 – – –
25 80 – – –
32 100 – – –

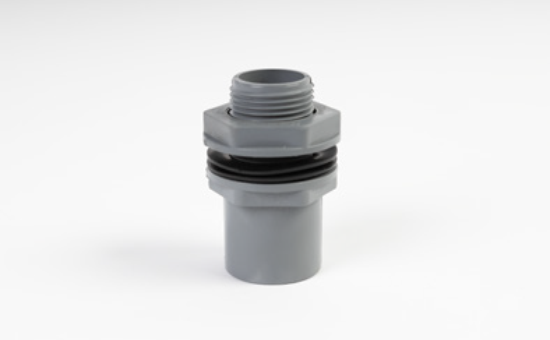

V-Tank Connector
Nominal Size (mm)
15 – – – –
20 – – – –
25 – – – –
– – – – –

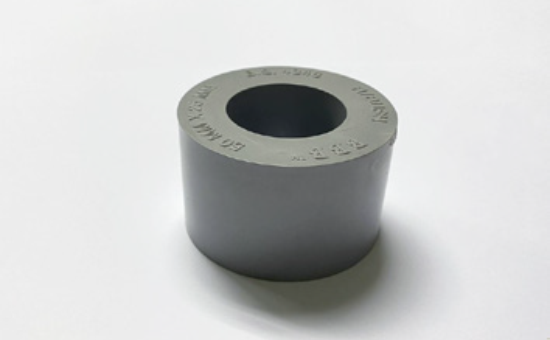

Reducing Bush
Nominal Size (mm)
20 x 15 32 x 20 40 x 25 – –
25 x 15 32 x 25 40 x 32 – –
25 x 20 40 x 15 – – –
32 x 15 40 x 20 – – –

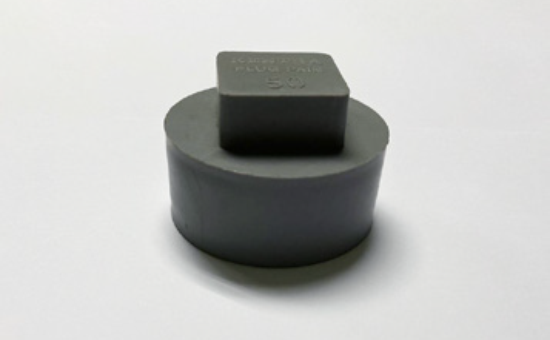

Plug Plain
Nominal Size (mm)
32 – – – –
40 – – – –
50 – – – –
– – – – –

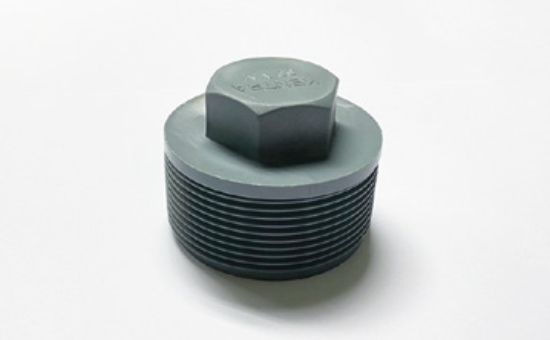

Plug
Nominal Size (mm)
15 40 – – –
20 50 – – –
25 – – – –
32 – – – –
